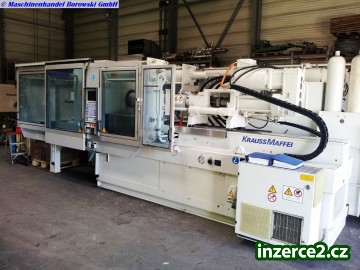

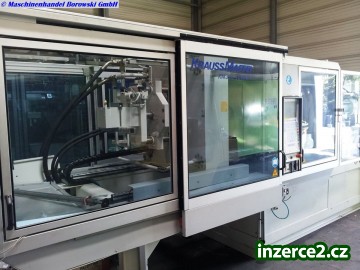

Pouzity vstrikolis Krauss Maffei KM 320-1000 C3 MC4

Administrace: editovat | smazat
Typ: prodám
Vloženo: 16. 11. 2015 v 14:53
Kategorie: Stroje : Ostatní
Lokalita: Praha-město
Kontakt: 0049 2173 8950790, Maschinenhandel Borowski GmbH, Germany
Počet shlédnutí: 253

Cena: 0,00

machine-no.: 502026
manufacturer: KRAUSS MAFFEI
Typ: KM 320-1000 C3 MC4
year of construction: 2004
operating hours: 46669 h

type of drive: vollhydraulisch
clamping type: Vollhydraulik
method of construction: vierholmig
clamping force: 3200 kN
distance between tie bars h: 710 mm
distance between tie bars v: 710 mm
size of mould plates h: 1060 mm
size of mould plates v: 1055 mm
min. mould height: 380 mm
opening stroke: 920 mm
ejector stroke: 250 mm
ejector force: 95 kN
centring device diameter of moving platen: 80 mm
centring device diameter of fixed platen: 120 mm
mould weight: 4780 kg

screw diameter: 55 mm
swept volume: 305 ccm
injection pressure: 1904 bar
screw length: 20 mm
screw geometry: 9
screw rotation: 453 min
plasticising rate: 428 g/s PS
injection rate into the open: 65 g/s PS
number of heating zones: 5
measures of machine lxbxh: 6.78m x 2.09m x 2.43m
total weight: 15200KG
• srew drive by three phase motor
• DFEE Pump for parallel function of hydr.ejector and core pulling
• pressure accumulator for uprated injection speed
• Anti vibration mounts
• Schuko-socket 10A
• electric interface for handling units according to Euromap 12
• air valve fixed WAP
• machine without material hopper
• CEE-socket 16A
• core pulling hydraulically 2x
• screen text german
• CEE-socket 32A
Maschinenhandel Borowski GmbH, Germany
