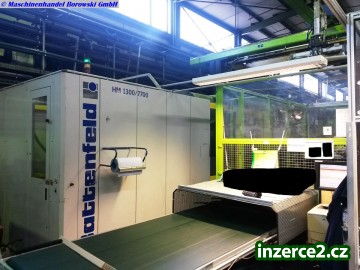

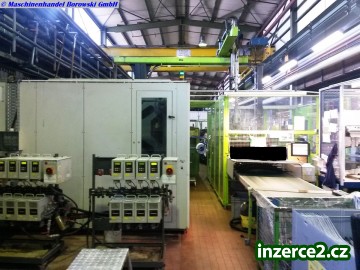

Pouzity vstrikolis Battenfeld HM 13000 2P - 7700

Administrace: editovat | smazat
Typ: prodám
Vloženo: 16. 11. 2015 v 15:03
Kategorie: Stroje : Ostatní
Lokalita: Praha-město
Kontakt: 0049 2173 8950790, Maschinenhandel Borowski GmbH, Germany
Počet shlédnutí: 260

Cena: 0,00

machine-no.: 502077
manufacturer: BATTENFELD
Typ: HM 13000 2P - 7700
year of construction: 2005
operating hours: 26600 h

type of drive: fully hydraulically
clamping type: fully hydraulic
method of construction: four tie bars
clamping force: 13000 kN
distance between tie bars h: 1600 mm
distance between tie bars v: 1250 mm
size of mould plates h: 2220 mm
size of mould plates v: 1880 mm
min. mould height: 650 mm
max. mould height: 1400 mm
opening stroke: 1680 mm
ejector stroke: 300 mm
ejector force: 117 kN
centring device diameter of moving platen: 250 mm
centring device diameter of fixed platen:

screw diameter: 75 mm
swept volume: 1878 ccm
injection pressure: 2389 bar
screw length: 22 mm
screw geometry: 9
screw stroke: 500 mm
screw rotation: 180 min
screw torque: 7480 N
plasticising rate: 92 g/s PS
injection rate into the open: 644 g/s PS
number of heating zones: 8
nozzle contact force: 226 kN
nozzle stroke: 700 mm

measures of machine lxbxh: 11m x 3.37m x 2.8m
total weight: 68500KG

• screen text german
• CEE-socket 16A
• cascade control uni -interface 6x
• Schuko-socket 10A
• machine incl. safety fencing
• machine without material hopper
• Anti vibration mounts
• interface for handling
• machine incl. Handling
• core pulling hydraulically 4x
Maschinenhandel Borowski GmbH, Germany
danuta.gatzki@mhborowski.de
